P10 Wandmontage outdoor Full Color Front Service - LED Videowand

3.927,00 € *

inkl. MwSt. zzgl. Versandkosten

Lieferzeit 60 Werktage

Angebot anfordern
  • 62Muen-P10WMFFS
  • 50,00 kg
  • 15 x 96 x 96 cm
LED Wand für die stationöre installtion an einer Wand, optional auf einer Säule. Die... mehr

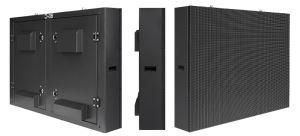

P10 Wandmontage outdoor Full Color Front Service - LED Videowand

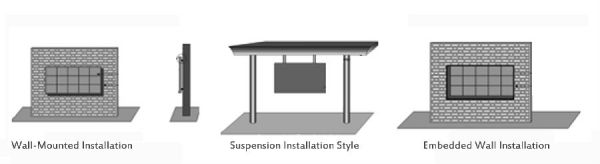

LED Wand für die stationöre installtion an einer Wand, optional auf einer Säule.

Die Schutzklasse IP 67 garantiert einen Ausseneinsatz 365 Tage im Jahr.

Direkte Sonneneinstrahlung stellen sind Problem , dank der 6000 cd / qm.

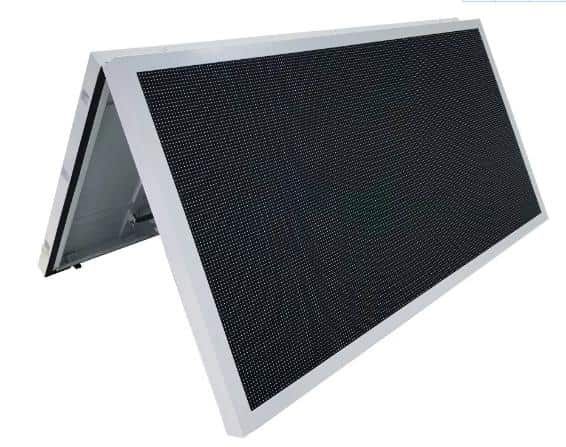

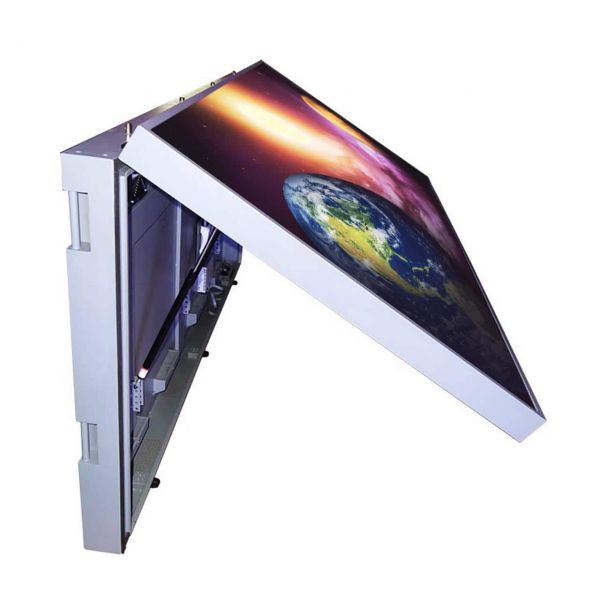

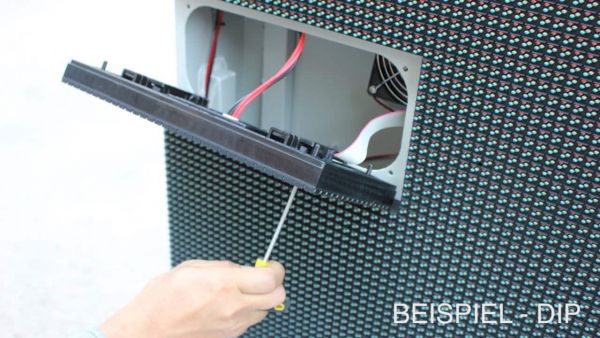

Dieses Model hat Frontservice.

Detail Informationen:

Pixel Density 10000 Dots/

Cabinet Resolution 96*96=9216(Dots)

Cabinet Dimension(W*H*D) 960*960mm

Module Quanty /Cabinet 3*6=18 (Pcs)

Cabinets Material Iron cabinet

Cabinet Weight 50 KGS

Whole screen

Ave. Consumption 400w /sqm

Max. Consumption 1000w/ sqm

Brightness 6000cd/

Viewing Angle 120(Horizontal),120(Vertical)

Colors 16 bit

Display Function Text,Graphics,Video

Refresh Rate 1920 Hz

Frame Frequency > 60 Hz

Input Voltage AC110-220V±10%,50/60Hz

Color Processing R(1024)×G(1024)×B(1024)

Brightness control 255 degree by software

MTBF( mean time between failures) 10000 hours

Life-span 100,000 hours

Protection Level(front/back) Front: IP65, Back: IP43

Malfunction Dot Rate less than 0.0001

Working Temperature -20℃~ +65 ℃

Humidity 10% ~ 95%

Control System

Control Mode Nova synchronization with PC

Control System Sending Card, Receiving Card

Software Nova control system software

Input Signal AVI/MPG/MPEG/TXT.etc

PC Operating System Microsoft Windows 7, XP and Vista



Certificate CE, RoHS, FCC, ISO9001



Einsatzbereich: Indoor, Outdoor
Serie: Fix out Front Service

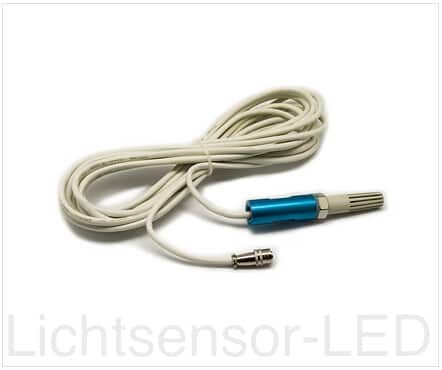

Zubehör optional: Tageslichtsensor
Material: Stahl
Pixelabstand (mm): 10
Gehäuse Auflösung (px): 96 x 96
Helligkeit (cd/m2): 6000
Refresh Rate (Hz): 1920
Gehäuse Breite (mm): 960
Gehäuse Höhe (mm): 960
Gehäuse Tiefe (mm): 150
Gehäuse Gewicht (kg): 50
Maximale Gehäuse Leistungsaufnahme (W): 1000
Horizontaler Betrachtungswinkel: 120
Schutzklasse: IP67
